LS螺旋输送机 LS螺旋输送机又被称为U型螺旋输送机,不适于输送易变质的、粘性大的、易结块的物料,因为这些物料在输送时会粘结在螺旋上,并随之旋转而不向前移动或者在吊轴承处形成物料的积塞,而使螺旋
|

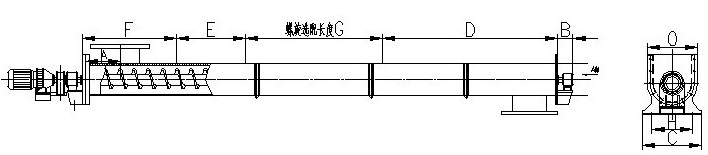

| 规格型号 | F | E | D | G | Q | B | A | O | H | C |
| LS100 | 2500 | 2500 | 2500 |
1500 2000 2500 |
180 | 180 | 180 | 178 | 120 | 160 |
| LS160 | 2500 | 2500 | 2500 | 200 | 180 | 200 | 266 | 120 | 160 | |
| LS200 | 2500 | 2500 | 2500 | 225 | 180 | 225 | 320 | 160 | 200 | |
| LS250 | 3000 | 3000 | 3000 | 250 | 200 | 250 | 370 | 200 | 250 | |
| LS315 | 3000 | 3000 | 3000 | 330 | 220 | 390 | 443 | 300 | 350 | |
| LS400 | 3000 | 3000 | 3000 | 350 | 227 | 390 | 533 | 320 | 400 | |
| LS500 | 3000 | 3000 | 3000 | 3500 | 400 | 250 | 400 | 563 | 400 | 500 |
LS螺旋输送机主要技术参数
|
LS型螺旋输送机 |
LS160 |
LS200 |
LS250 |
LS315 |
LS400 |
LS500 |
LS630 |
LS800 |
LS1000 |
LS1250 |
|
螺旋直径(mm) |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
螺距(mm) |
160 |
200 |
250 |
315 |
355 |
400 |
450 |
500 |
560 |
630 |
|
转速(r/min) |
120 |
90 |
90 |
75 |
75 |
60 |
60 |
45 |
35 |
30 |
|
输送量QΦ=0.33（m3/h） |
7.6 |
11 |
22 |
36.4 |
66.1 |
93.1 |
160 |
223 |
304 |
458 |
|
功率Pd 1=10m(KW) |
1.5 |
2.2 |
2.4 |
3.2 |
5.1 |
4.1 |
8.6 |
12 |
16 |
24.4 |
|
功率Pd 1=30m(KW) |
2.8 |
3.2 |
5.3 |
8.4 |
11 |
15.3 |
25.9 |
36 |
48 |
73.3 |
|
转速(r/min) |
90 |
75 |
75 |
60 |
60 |
45 |
45 |
35 |
30 |
20 |
|
输送量QΦ=0.33（m3/h） |
5.7 |
18 |
18 |
29.1 |
52.9 |
69.8 |
125 |
174 |
261 |
305 |
|
功率Pd 1=10m(KW) |
1.3 |
2.1 |
2.1 |
2.9 |
4.1 |
4.7 |
6.8 |
9.4 |
14.1 |
16.5 |
|
功率Pd 1=30m(KW) |
2.3 |
4.5 |
4.5 |
7 |
8.9 |
11.6 |
20.4 |
28.3 |
42.2 |
49.5 |
|
转速(r/min) |
75 |
60 |
60 |
45 |
45 |
35 |
35 |
30 |
20 |
16 |
|
输送量QΦ=0.33（m3/h） |
4.8 |
15 |
15 |
21.8 |
39.6 |
54.3 |
97 |
149 |
174 |
244 |
|
功率Pd 1=10m(KW) |
1.2 |
1.9 |
1.9 |
2.5 |
3.4 |
4.3 |
5.4 |
8.1 |
9.5 |
13.3 |
|
功率Pd 1=30m(KW) |
2.2 |
3.8 |
3.8 |
5.4 |
6.8 |
9.2 |
16 |
24.4 |
28.6 |
39.9 |
|
转速(r/min) |
60 |
45 |
45 |
35 |
35 |
30 |
30 |
20 |
16 |
13 |
|
输送量QΦ=0.33（m3/h） |
3.8 |
11 |
11 |
17 |
31.7 |
46.5 |
73.0 |
99.3 |
139 |
199 |
|
功率Pd 1=10m(KW) |
1.1 |
1.6 |
1.6 |
2.1 |
3.1 |
3.7 |
4.6 |
5.7 |
7.7 |
11 |
|
功率Pd 1=30m(KW) |
1.8 |
3.4 |
3.4 |
4.4 |
5.6 |
8 |
14 |
16.7 |
23.2 |
33 |
